Cube Set for AGA

Cube Set for AGA

SKU:
OR033183
€1,157.00
(No reviews yet)
Current Stock:
Adding to cart… The item has been added
Description

Cube Set for AGA

(code OR033183) - Delivery time approximately 45-60 days.

Designed to make the OCEANREEF Cube3 R2 compatible with AGA Mask.

Key Features

GSM CUBE3 R2 is OCEAN REEF’s most versatile underwater communication unit. It supports three communication modes in one device: wireless ultrasonic, hardwired full‑duplex hands free (via cable to ALPHA PRO X DIVERS surface unit), and surface VHF interfacing.

The unit is a permanent wireless unit. Always on receiving mode for any communication on channel 1 frequency. PTT button activates wireless transmission on channel 1. Six-pin waterproof connection permits connecting and detaching from cable communication while underwater.

It can be connected to the ALPHA PRO X DIVERS surface unit for cable hardwired communication – full duplex, hands free communication.

GSM CUBE3 R2 can be connected to a separate unit in order to interface with a VHF radio and permit radio communication while on the surface.

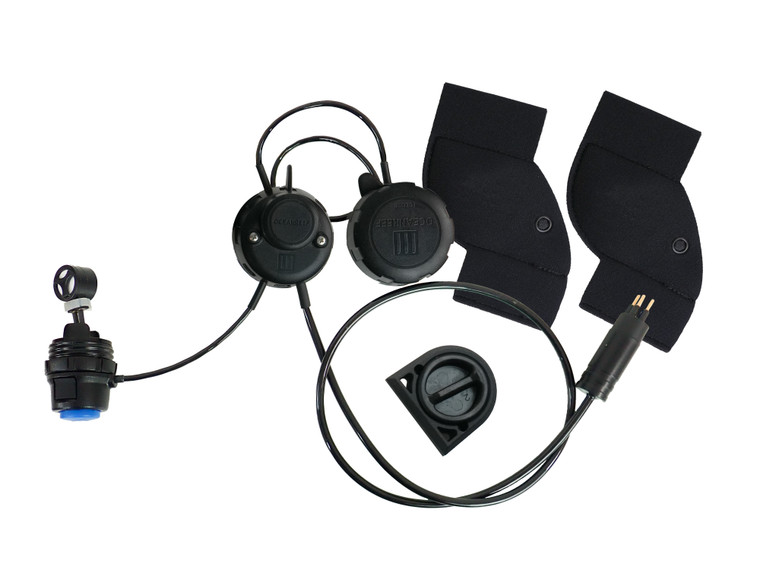

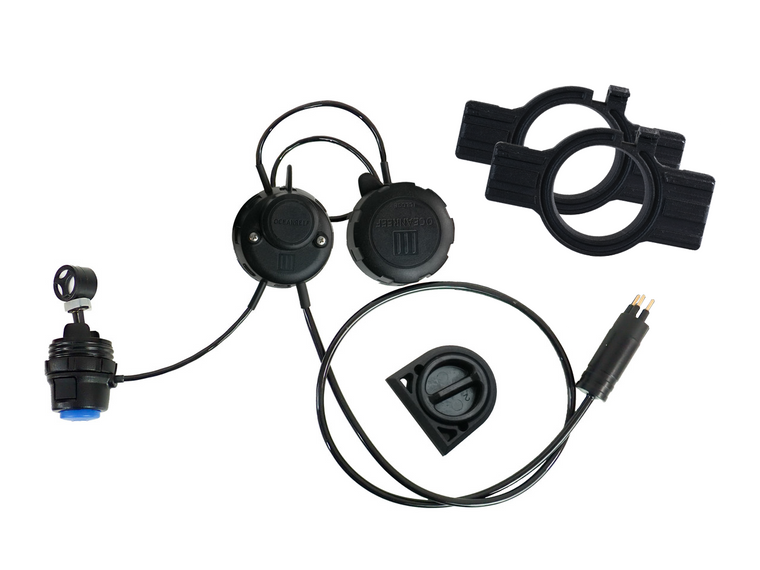

Inside the box

• GSM Cube3 R2

• Two neoprene earphone assemblies for AGA Mask

• Communication adapter for AGA Mask

Technical Specifications

Wireless frequency: Channel 1 ultrasonic at 31.768 kHz (PTT to transmit; always-on receive).
Connectivity: 6‑pin waterproof connector for hardwire to ALPHA PRO X DIVERS. Interface-ready for VHF via separate surface interface kit and waterproof bag.
Power: 9V alkaline battery only. User-replaceable. Observe polarity protection.
Mounting: Compatible with all OCEAN REEF IDMs; optimized for Space/Neptune masks via NACS.
Microphone: D‑Mic with hydrophobic membrane; designed to reduce exhalation bubble noise.
User controls/indications: PTT transmit button; call/receive via wireless; full-duplex when hardwired.
Environmental: Designed for immersion; rinse with fresh water after dives; avoid solvents and direct sunlight.

Customization

Upon request, the standard Six-pin waterproof connection can be replaced with a Marsch Marine connection.
